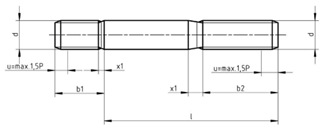

10.9 Grade DIN 835 Stud Bolts
10.9 Grade DIN 835 Stud Bolts
|
DIA.
(d)
|
Pitch
|
b1
|
(b2) L < 125
|
(b2) L = 125- 200
|
(b2) L ≥
200
|
X1
|
|
M8
|
1.25
|
16
|
22
|
28
|
–
|
3.2
|
|
M10
|
1.5
|
20
|
26
|
30
|
45
|
3.8
|
|
M12
|
1.75
|
24
|
30
|
36
|
49
|
4.3
|
|
M14
|
2
|
28
|
34
|
40
|
53
|
5
|
|
M16
|
2
|
32
|
38
|
44
|
57
|
5
|
|
M18
|
2.5
|
36
|
42
|
48
|
61
|
6.3
|
|
M20
|
2.5
|
40
|
46
|
52
|
65
|
6.3
|
|
M22
|
2.5
|
44
|
50
|
56
|
69
|
6.3
|
|
M24
|
3
|
48
|
54
|
60
|
73
|
7.5
|
